EPCQ128ASI16N Description

The EPCQ128ASI16N is a 128 Mb (16 MB) configuration memory device designed for Intel® FPGAs (primarily Cyclone®, Arria®, and Stratix® series). Packaged in a compact 16-pin SOIC, it offers reliable, high-speed, non-volatile storage to load FPGA configuration data upon power-up. The EPCQ family provides a streamlined interface for FPGA booting, while maintaining high system integrity and efficient memory utilization.

EPCQ128ASI16N Features

Memory Capacity: 128 Mb (16 MB) of serial configuration flash memory

SPI Interface: Quad SPI (Serial Peripheral Interface) for faster data throughput

High-Speed Configuration: Supports fast FPGA boot-up with x1, x2, and x4 data modes

Security Support: Secure data storage with protection against accidental overwrites

Endurance & Retention: 100,000+ erase/program cycles, 20+ years data retention

Low Power Operation: Efficient standby and active current profiles

Package: 16-pin SOIC (Small Outline Integrated Circuit), RoHS-compliant

Compatible with Intel Quartus Prime software for seamless FPGA integration

EPCQ128ASI16N Applications

FPGA Boot Configuration for Cyclone IV, V, MAX 10, and Arria series

Embedded Systems requiring reprogrammable boot flash

Industrial Automation devices with mission-critical bootloaders

Secure Boot Applications in networking and data communication

Consumer Electronics needing fast, reliable startup memory

Automated Test Equipment (ATE) and high-reliability systems

EPCQ128ASI16N CAD Model

Symbol

Footprint

3D Model

EPCQ128ASI16N Package

16-Lead SOIC (Small Outline Integrated Circuit) – Wide Body

Package Type: SOIC-16W

Body Width: 7.5 mm

Pitch: 1.27 mm (lead-to-lead spacing)

Mounting Type: Surface Mount (SMT)

RoHS Compliant: Yes

This wide-body SOIC-16 package offers a good balance of compact size and ease of PCB routing, making it suitable for space-sensitive FPGA-based designs.

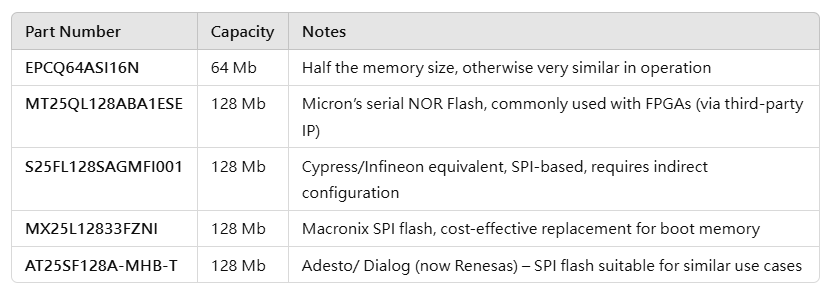

EPCQ128ASI16N Alternatives

Figure. 1

EPCQ128ASI16N Manufacturer

Intel Corporation is a global leader in semiconductor innovation, renowned for shaping the future of computing and technology. Founded in 1968 and headquartered in Santa Clara, California, Intel designs and manufactures cutting-edge microprocessors, integrated circuits, and system-on-chip (SoC) solutions that power everything from personal computers and servers to advanced embedded systems and cloud infrastructure.

As the inventor of the x86 architecture, Intel has been instrumental in driving the evolution of computing over the past five decades. Today, the company is also a major player in AI acceleration, networking, autonomous driving, and FPGA (Field-Programmable Gate Array) technologies, especially after its acquisition of Altera Corporation in 2015.

With a strong focus on innovation, sustainability, and digital transformation, Intel continues to lead in delivering intelligent solutions that connect, analyze, and power the modern world.

EPCQ128ASI16N FAQs

Can EPCQ128ASI16N be used with all Intel FPGAs?

Answer: No. It is compatible with most Intel FPGAs that support Active Serial (AS) configuration mode, including Cyclone IV/V, MAX 10, and Arria series. Not suitable for FPGAs requiring JTAG-only boot.

What programming tools support EPCQ128ASI16N?

Answer: Intel's Quartus Prime software supports programming and configuration of the EPCQ128ASI16N via USB-Blaster or ByteBlaster programming cables.

How fast is the configuration process using x4 (quad-SPI) mode?

Answer: The maximum clock frequency is typically up to 100 MHz, and with quad-SPI (x4) enabled, the FPGA can be configured significantly faster compared to traditional single-bit serial flash.

Is in-system reprogramming supported?

Answer: Yes. The EPCQ128ASI16N supports in-system programming (ISP) through the Active Serial interface, which allows firmware updates without removing the chip from the board.

Can it store multiple images or partial reconfiguration files?

Answer: Yes, if the FPGA and design support it. The 128 Mb capacity allows multiple configuration images or room for partial reconfiguration files, especially in large-scale designs.
