EP3C5E144I7N Description

The EP3C5E144I7N is a Cyclone III series FPGA from Altera (now part of Intel) that integrates 5,136 logic cells (Cells/Units), has a maximum internal frequency of up to 437.5 MHz, and is fabricated in 65nm process technology. In addition, it has rich I/O resources and memory RAM for a wide range of application scenarios. Technically, the EP3C5E144I7N is known for its high performance, low power consumption and flexible programmability. It shows a wide range of application potential in communication, industrial control, consumer electronics and other fields. In terms of package form factor, it is available in an EQFP-144 package, which is compact and reliable for a wide range of board designs.

EP3C5E144I7N Features

High performance: 5136 logic cells (Cells/Units) to support complex logic and data processing tasks. A maximum internal frequency of 437.5 MHz ensures high-speed data processing and signal transmission.

Low Power Consumption: Manufactured in 65nm process technology, combined with the low power design of the Cyclone III family, the EP3C5E144I7N reduces power consumption while maintaining high performance.

Flexible Programmability: As an FPGA, the EP3C5E144I7N is highly flexible and can be programmed and reconfigured according to application requirements. However, it is important to note that it does not support In-System Programmable (ISP) technology and reprogramming, which means that it needs to be programmed during the manufacturing process and keep the configuration fixed after it is deployed to the system.

Rich I/O resources: Provides 94 maximum user input/output pins for easy connection and communication with other electronic components.

Large memory capacity: Built-in 423,936-bit memory RAM meets data storage and processing needs.

Compact Package: Adopts the EQFP-144 package form factor, a compact and reliable package form factor that is suitable for a wide range of board designs.

EP3C5E144I7N Applications

The EP3C5E144I7N, an FPGA in the Cyclone III family, has been widely used in a variety of fields due to its high performance, low power consumption, and flexible programmability. The following are its main application areas:

Communication: In the communication field, EP3C5E144I7N can be used in high-speed data transmission, signal processing and network equipment. Its high performance and rich logic resources make it capable of handling complex communication protocols and high-speed data streams, meeting the high demand for data processing capability in modern communication networks.

Industrial control: In industrial control systems, FPGAs are favored for their programmability and real-time processing capabilities.EP3C5E144I7N can be used in automation control systems, robotics and intelligent manufacturing. It is capable of real-time processing of sensor data, execution of complex control algorithms, and communication with various industrial equipment to enhance the efficiency and intelligence of industrial production.

Consumer Electronics: With the increasing intelligence and complexity of consumer electronics products, FPGAs are more and more widely used in them. EP3C5E144I7N can be used in various aspects such as high-definition video processing, audio decoding, and image processing. Its high performance and flexible programmability make it capable of providing high-quality multimedia processing effects and enhancing the user experience of consumer electronics products.

Other fields: In addition, the EP3C5E144I7N can be used in a variety of fields such as medical electronics, automotive electronics, and aerospace. In these fields, the high performance, low power consumption and reliability of FPGAs make them an important tool for realizing complex electronic systems and algorithms.

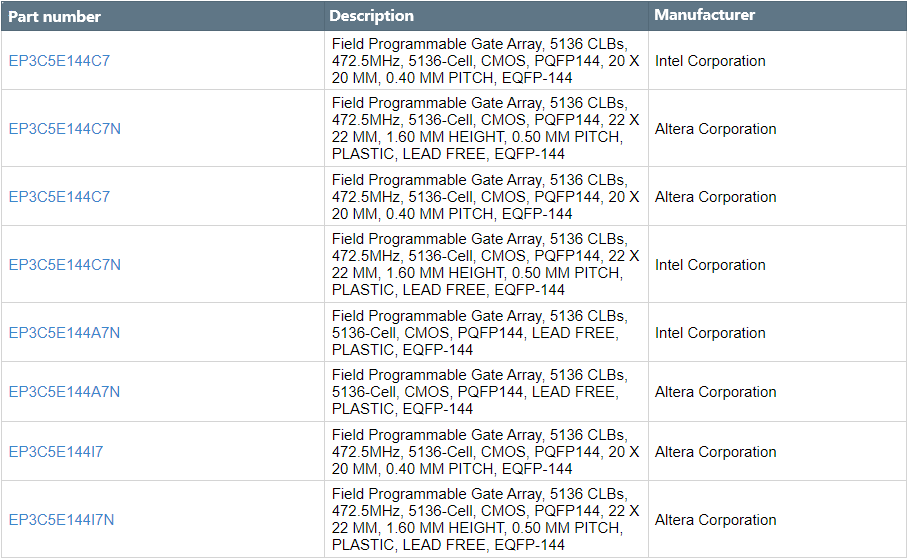

EP3C5E144I7N Alternatives

EP3C5E144I7N CAD Model

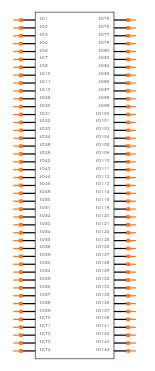

Symbol

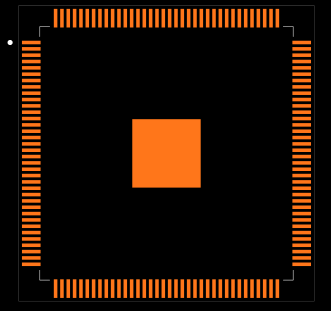

Footprint

3D Model

EP3C5E144I7N Manufacturer

Intel Corporation (Intel) is a global leader in semiconductor and computing innovation, headquartered in Santa Clara, California. The company was co-founded in 1968 by Robert Noyce and Gordon Moore, who were originally known for the development and production of integrated circuits. Since its inception, Intel has remained committed to pushing the boundaries of computing technology to bring a more efficient and intelligent computing experience to users around the world. In the semiconductor industry, Intel has become one of the global market leaders due to its superior technological strength and innovation. Its product line covers a wide range of areas such as processors, chipsets, graphics processors, solid state drives, etc., providing high-performance and highly reliable semiconductor solutions for users around the world. Intel's processor products, such as Core and Xeon series, occupy an important position in the fields of personal computers, servers and data centers, providing powerful computing support for various application scenarios. In addition to semiconductor products, Intel also actively promotes the development of the computing innovation field, and is committed to research and development of new technologies and applications to meet the challenges of the future computing field.

EP3C5E144I7N FAQ

1. Question: Which manufacturer is the EP3C5E144I7N?

Answer: The EP3C5E144I7N is a Cyclone III series FPGA manufactured by Altera (now part of Intel).

2. Question: What are the main application areas for the EP3C5E144I7N?

Answer: The EP3C5E144I7N is widely used in a variety of applications including communications, industrial control, and consumer electronics. It is capable of handling complex data processing tasks and adapting to different application requirements.

3. Question: What are the main technical specifications of the EP3C5E144I7N?

Answer: The EP3C5E144I7N has 5136 Logic Cells/Units, a maximum internal frequency up to 437.5 MHz, and is fabricated in 65nm process technology, featuring low power consumption and high performance. In addition, it provides abundant I/O resources and memory RAM to meet the needs of different application scenarios.

4. Question: What are my options if I need to find a replacement for EP3C5E144I7N?

Answer: You can consider FPGA products from other manufacturers, such as similar models from brands like Xilinx and Lattice. When choosing a replacement, please make sure that the product's performance parameters, pin configuration and package form factor match your application requirements.

5. Question: Where can I purchase the EP3C5E144I7N?

Answer: The EP3C5E144I7N is available from several electronic component distributors and retailers. You can use search engines to find reliable suppliers and compare prices and services from different channels. In addition, you can also contact Intel or its authorized distributors directly for purchase.
