5M1270ZT144I5N Description

The 5M1270ZT144I5N is part of the Altera MAX® V CPLD (Complex Programmable Logic Device) series, designed for low-power and high-performance applications. It offers an efficient solution for implementing complex logic with minimal power consumption, making it suitable for various electronic and industrial applications.

5M1270ZT144I5N Features

Logic Elements (LEs): 1,270.

Package: TQFP-144 (Thin Quad Flat Pack).

Operating Temperature: Industrial range (-40°C to +100°C).

Low Power Consumption: Optimized for energy efficiency.

Non-Volatile Architecture: Ensures instant-on capability without requiring external configuration.

User Flash Memory (UFM): Integrated for additional storage flexibility.

Wide Voltage Support: Operates across a range of supply voltages.

High I/O Pin Count: 114 user I/O pins for connectivity with external devices.

Embedded User Flash Memory (UFM): Configurable for various data storage applications.

5M1270ZT144I5N Applications

Industrial Automation: Machine controllers and signal processing systems.

Consumer Electronics: Smart devices, wearable technology, and gaming peripherals.

Automotive Systems: Communication modules and infotainment systems.

Communication Equipment: Protocol bridging and data routing.

Power Management: Power sequencing and management systems.

5M1270ZT144I5N CAD Model

Symbol

Footprint

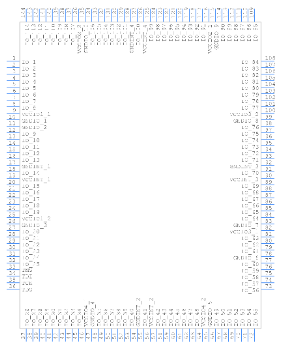

3D Model

5M1270ZT144I5N Advantages

Instant-on performance.

Flexible configuration options.

Cost-effective for small to medium-scale designs.

5M1270ZT144I5N Alternatives

If the 5M1270ZT144I5N is unavailable, consider these alternatives:

Lattice MACHXO2 Series

Xilinx CoolRunner-II CPLDs

Atmel ATF15xx CPLD Family

Altera MAX II or MAX 10 Series

5M1270ZT144I5N Manufacturers

Intel Corporation, founded in 1968, is a global leader in semiconductor manufacturing and technology innovation. Headquartered in Santa Clara, California, Intel is widely recognized for its processors used in personal computers, data centers, and embedded systems. Over the years, Intel has expanded into diverse technology areas, including artificial intelligence (AI), 5G networking, autonomous driving, and edge computing.

5M1270ZT144I5N FAQs

Question: What is the power consumption of the 5M1270ZT144I5N?

Answer: The device is designed for low power consumption, with efficient operation across varying workloads, ideal for battery-powered applications.

Question: Can the device operate in harsh environments?

Answer: Yes, its industrial temperature range (-40°C to +100°C) makes it suitable for demanding environments.

Question: Does it require external configuration storage?

Answer: No, the 5M1270ZT144I5N has a non-volatile architecture, eliminating the need for external configuration storage.

Question: What programming tools are compatible with this device?

Answer: The Altera Quartus® II software is typically used for design and programming.

Question: How does the UFM in the device enhance its functionality?

Answer: The User Flash Memory allows storing configuration data, lookup tables, or small firmware patches directly on the chip.
