10CL055YF484I7G Description

The 10CL055YF484I7G is a high-performance FPGA from Intel’s Cyclone® 10 LP series, designed to deliver low power consumption while offering up to 55K logic elements for cost-optimized logic, DSP, and embedded applications. Packaged in a 484-pin FBGA, it supports a rich set of I/O standards, flexible PLL configurations, and embedded memory blocks, making it ideal for compact yet powerful designs. Its industrial temperature rating (-40°C to +100°C) ensures reliable operation in harsh environments, from factory automation to edge computing systems.

10CL055YF484I7G Features

Logic Elements (LEs): 55,000 LEs for complex logic implementation.

I/O Pins: 288 user I/Os with support for multiple voltage levels (1.2V to 3.3V).

Memory: Integrated M9K memory blocks for high-speed data buffering and storage.

Clock Management: Multiple PLLs with fractional synthesis for precise clocking.

Low Power Design: Optimized architecture for energy-efficient operation in always-on systems.

Industrial Grade: Operates across -40°C to +100°C with high thermal stability.

Package: Compact 484-pin FBGA for high-density PCB layouts.

10CL055YF484I7G Applications

Industrial Automation: Real-time motor control, process monitoring, and machine vision.

Communications Infrastructure: Low-latency signal processing and protocol bridging.

Embedded Vision Systems: Camera interfacing, image preprocessing, and analytics.

Automotive Electronics: Advanced driver assistance (ADAS) and in-vehicle networking.

Aerospace and Defense: Rugged computing for navigation and control systems.

10CL055YF484I7G CAD Model

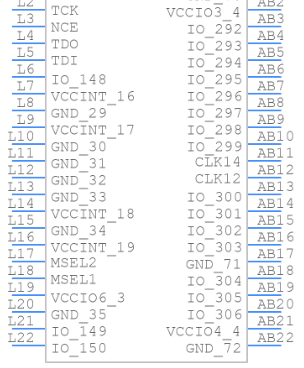

Symbol

Footprint

3D Model

10CL055YF484I7G Alternatives

Intel Cyclone 10 LP 10CL025YU256I7G – Lower logic density for cost-sensitive designs.

Intel Cyclone V 5CEFA7F31I7N – Higher performance with more DSP blocks.

Lattice ECP5 LFE5U-45F-8BG381I – Compact FPGA with optimized DSP for embedded systems.

Xilinx Artix-7 XC7A50T-2FGG484I – Low power, high performance with wider ecosystem.

Microchip PolarFire MPF100T-FCSG325I – Low-power non-volatile FPGA with high security.

10CL055YF484I7G Manufacturer

Intel Corporation, founded in 1968 by Robert Noyce and Gordon Moore, is a global leader in semiconductor innovation headquartered in Santa Clara, California, USA. Known for inventing the x86 microprocessor architecture that powers most of the world’s personal computers, Intel designs and manufactures a wide range of advanced integrated circuits and computing solutions. The company’s portfolio includes central processing units (CPUs), graphics processors, system-on-chip (SoC) solutions, networking products, and cutting-edge technologies for artificial intelligence, data centers, autonomous systems, and the Internet of Things (IoT). With a strong focus on research and development, Intel drives advancements in process technology, such as leading-edge nanometer manufacturing nodes, and plays a crucial role in shaping the future of computing through innovations in performance, energy efficiency, and connectivity.

10CL055YF484I7G FAQs

What is the core voltage required for the 10CL055YF484I7G?

The FPGA core operates at 1.2V, with I/O banks supporting 1.2V, 1.5V, 1.8V, 2.5V, and 3.3V standards.

Does this device support on-chip configuration memory?

No, it requires an external configuration device or JTAG programming for initialization.

What is the maximum user I/O count for this package?

The 484-pin FBGA package offers up to 288 usable I/O pins.

Is the 10CL055YF484I7G suitable for high-speed transceiver applications?

No, it does not include dedicated multi-gigabit transceivers; it’s optimized for LVDS and parallel interfaces.

Which development tools support programming this FPGA?

It is supported by Intel Quartus Prime Lite and Standard Editions, with simulation supported by ModelSim Intel FPGA Edition.
