MCP6442T-E/MNY Description

The MCP6442T-E/MNY is a dual nano-power operational amplifier (op-amp) designed by Microchip Technology Inc. It belongs to the MCP644x series, which is known for ultra-low-power consumption, making it ideal for battery-powered and portable applications. This op-amp operates on a supply voltage as low as 1.4V up to 6.0V and provides high stability and low offset, even at low power consumption levels.

MCP6442T-E/MNY Features

Ultra-Low Power Consumption: Typical quiescent current of 600 nA per amplifier.

Operating Voltage Range: 1.4V to 6.0V, supporting single-supply operation.

Rail-to-Rail Input and Output: Ensures maximum signal range.

Low Input Offset Voltage: Provides high accuracy with minimal error.

Gain Bandwidth Product: 10 kHz, suitable for low-frequency applications.

Package: SOT-23-8 package, ideal for space-constrained designs.

MCP6442T-E/MNY Applications

Battery-Powered Devices: Suitable for applications requiring low power, such as wearables, remote sensors, and portable electronics.

Medical Devices: Effective in low-power medical monitoring devices.

Industrial Sensors: Ideal for precision sensing applications in remote or industrial environments.

Consumer Electronics: Useful in portable electronics where extended battery life is needed.

Alternatives

MCP6042T-I/MS (Microchip): Offers similar low-power characteristics with dual op-amp configuration.

TLV8802 (Texas Instruments): A low-power, dual-channel alternative with a similar power profile.

OPA2333 (Texas Instruments): Provides low offset voltage and low power consumption.

LTC6078 (Analog Devices): A precision low-power op-amp with dual configuration and rail-to-rail operation.

MCP6442T-E/MNY CAD Model

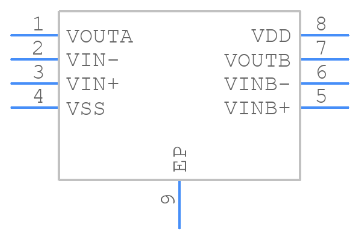

Symbol

Footprint

3D Model

MCP6442T-E/MNY Manufacturer

Microchip Technology Inc. is a leading American semiconductor company that designs and manufactures microcontrollers, mixed-signal, analog, and Flash-IP integrated circuits. Founded in 1987 and headquartered in Chandler, Arizona, Microchip provides a broad range of innovative solutions used in various applications across industries, including automotive, industrial, consumer, and telecommunications. Known for its expertise in microcontroller and embedded solutions, Microchip’s product portfolio includes microcontrollers, microprocessors, FPGAs, power management devices, memory products, and timing solutions, among others. The company focuses on delivering high-quality, reliable, and energy-efficient components that enable efficient and flexible designs in embedded systems and IoT applications.

MCP6442T-E/MNY FAQs

What is the typical power consumption of the MCP6442T-E/MNY?

The MCP6442T-E/MNY is designed for ultra-low-power applications, consuming a typical quiescent current of only 600 nA per amplifier, making it ideal for battery-operated devices.

What voltage range does the MCP6442T-E/MNY support?

This op-amp operates across a wide supply voltage range from 1.4V to 6.0V, making it suitable for single-supply systems, including those with low-voltage battery operation.

Does the MCP6442T-E/MNY support rail-to-rail input and output?

Yes, the MCP6442T-E/MNY provides rail-to-rail input and output, allowing for maximum signal range and greater flexibility in low-voltage applications.

In what applications is the MCP6442T-E/MNY commonly used?

Due to its ultra-low power and rail-to-rail performance, it is commonly used in battery-powered devices, wearable electronics, remote sensors, medical monitoring devices, and other low-power precision applications.

What package options are available for the MCP6442T-E/MNY?

The MCP6442T-E/MNY is available in a compact SOT-23-8 package, ideal for space-constrained designs, particularly in portable and miniaturized devices.
