EPM570F100C5N CPLDs: Features, Applications and Datasheet

2025-02-20 10:06:09 1112

EPM570F100C5N Description

The EPM570F100C5N is a member of the MAX V series of field-programmable gate arrays (FPGAs) from Intel (formerly Altera). This FPGA is designed to provide low-power, high-performance capabilities, making it suitable for various industrial, automotive, consumer electronics, and communications applications. It features an architecture that offers a combination of logic elements, memory resources, and I/O capabilities while consuming low power, which is essential for many portable and battery-operated devices.



EPM570F100C5N Features

High Density Logic Elements: The EPM570F100C5N comes with 5,000 logic elements, offering significant capacity for a wide range of applications.

Configurable I/O: It supports a wide variety of I/O standards, ensuring compatibility with different communication protocols.

Low Power Consumption: Designed for low power, the FPGA is optimized to meet power efficiency requirements, ideal for battery-operated devices.

Integrated Memory Blocks: It includes internal memory resources, such as block RAM, which are useful for buffering and temporary data storage in embedded systems.

Flexible Clocking: The FPGA supports a variety of clock sources and configurations to meet the timing requirements of different applications.

Programming: The device is programmed via JTAG, and can be reconfigured multiple times, providing flexibility in design and field updates.

Secure Design: It offers a secure configuration to protect against unauthorized access or tampering of the design.



EPM570F100C5N Applications

Consumer Electronics: Ideal for applications in smart home devices, portable devices, and wearables where low power consumption and flexibility are crucial.

Automotive: Suitable for infotainment systems, advanced driver assistance systems (ADAS), and communication systems in vehicles.

Industrial Automation: Used in embedded control systems, sensor interfaces, and factory automation where reconfigurability and low power are important.

Telecommunications: Applied in communications devices such as routers, switches, and base stations.

IoT (Internet of Things): Perfect for IoT applications where low power and efficient processing are necessary.

Embedded Systems: Used in various embedded applications that require programmable logic to meet specific tasks, from data processing to communication.



EPM570F100C5N CAD Model

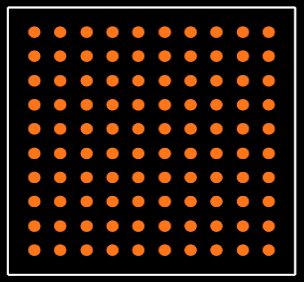

Footprint



EPM570F100C5N Alternatives

Xilinx Spartan-6 FPGAs: Similar in terms of power efficiency and low cost for applications requiring moderate logic capacity.

Lattice iCE40 FPGAs: Known for ultra-low power and compact design, useful for battery-powered devices.

Intel MAX 10 FPGAs: Another low-power FPGA from Intel designed for similar applications, with a focus on automotive, industrial, and IoT systems.

Microsemi IGLOO2 FPGAs: Low-power FPGAs designed for embedded systems, with strong focus on security and efficiency.

Actel ProASIC3 FPGAs: These offer a balance between low power consumption and high-performance features, typically used in industrial and automotive sectors.



EPM570F100C5N FAQs

How to program the EPM570F100C5N FPGA?

The EPM570F100C5N FPGA is programmed using JTAG programming tools, such as the USB-Blaster or ByteBlaster. Configuration files in .sof (SRAM Object File) format are used for the programming.



How do I achieve low power operation in the EPM570F100C5N?

You can achieve low power operation by optimizing clocking resources, using low power I/O standards, and employing dynamic power management techniques, such as clock gating and resource optimization.



How to interface with external devices using EPM570F100C5N?

The FPGA offers a wide range of configurable I/O options, allowing you to interface with external devices like sensors, actuators, and other embedded systems via GPIO, SPI, UART, or other communication protocols.



How can I use the internal memory of EPM570F100C5N?

The EPM570F100C5N includes block RAM that can be used for data buffering or temporary storage. You can configure the memory blocks as dual-port RAMs, FIFOs, or other memory structures to fit your application.



What is the maximum clock frequency supported by the EPM570F100C5N?

The EPM570F100C5N supports a maximum clock frequency of 200 MHz, but this can depend on the design's complexity and the constraints on the FPGA’s resources.
